Drivers

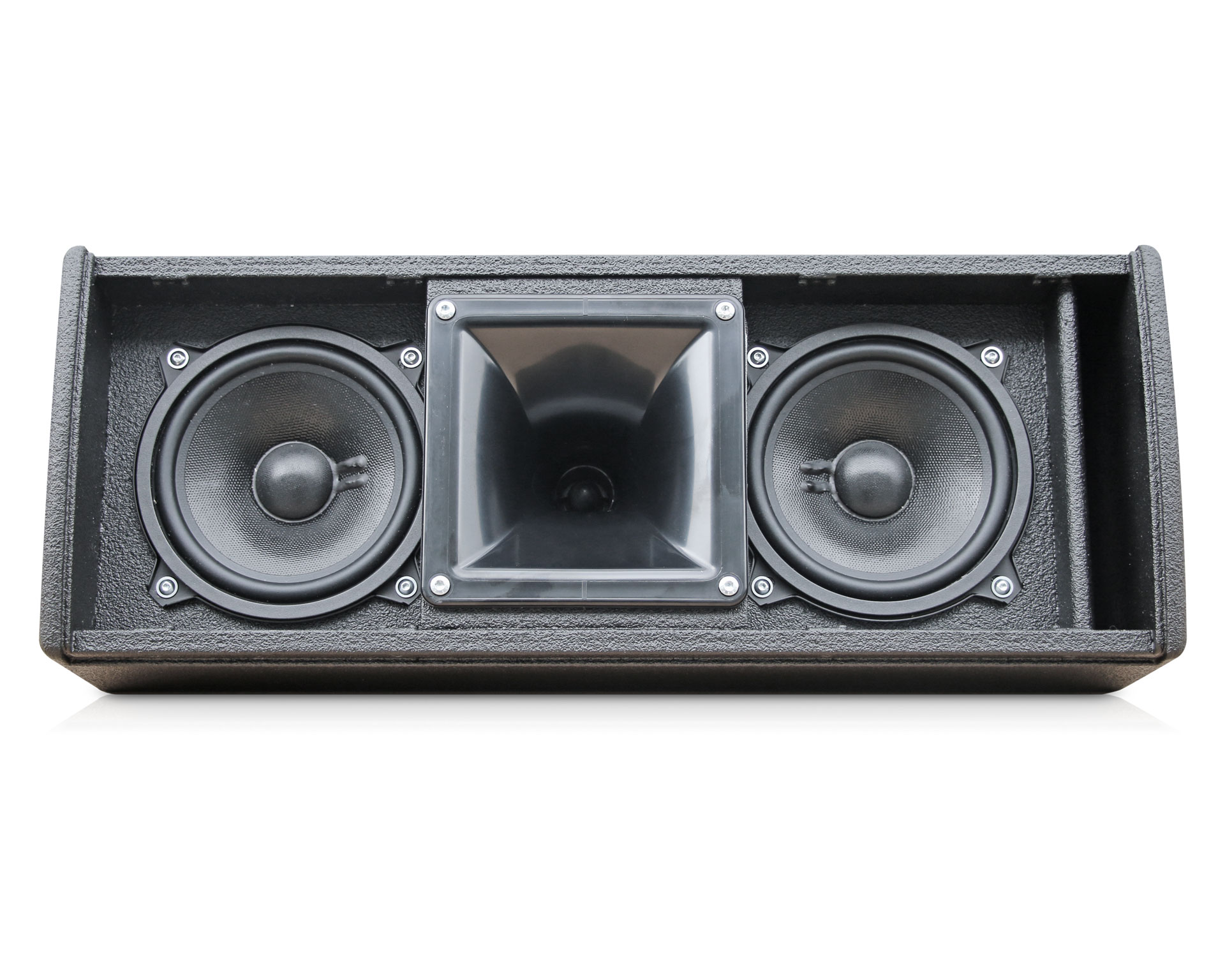

LF: 2 x 5" Neodym woofer with 32 mm (1,25“) voice coil
HF: 1 x 1“ Ferrit compression driver with 1“ voice coil

Frequency range
71 Hz - 19 kHz (- 10 dB)
139 Hz - 15,7 kHz (+/- 3 dB)

Coverage range (h x v)
70° x 55°

Impedance
12 Ω

Powerhandling (AES / Program / Peak)
200 W / 400 W / 800 W

Sensitivity 1 W/1 m
91,5 dB SPL

Sound pressure at (AES / Program / Peak)
114dB SPL / 117 dB SPL / 120 dB SPL

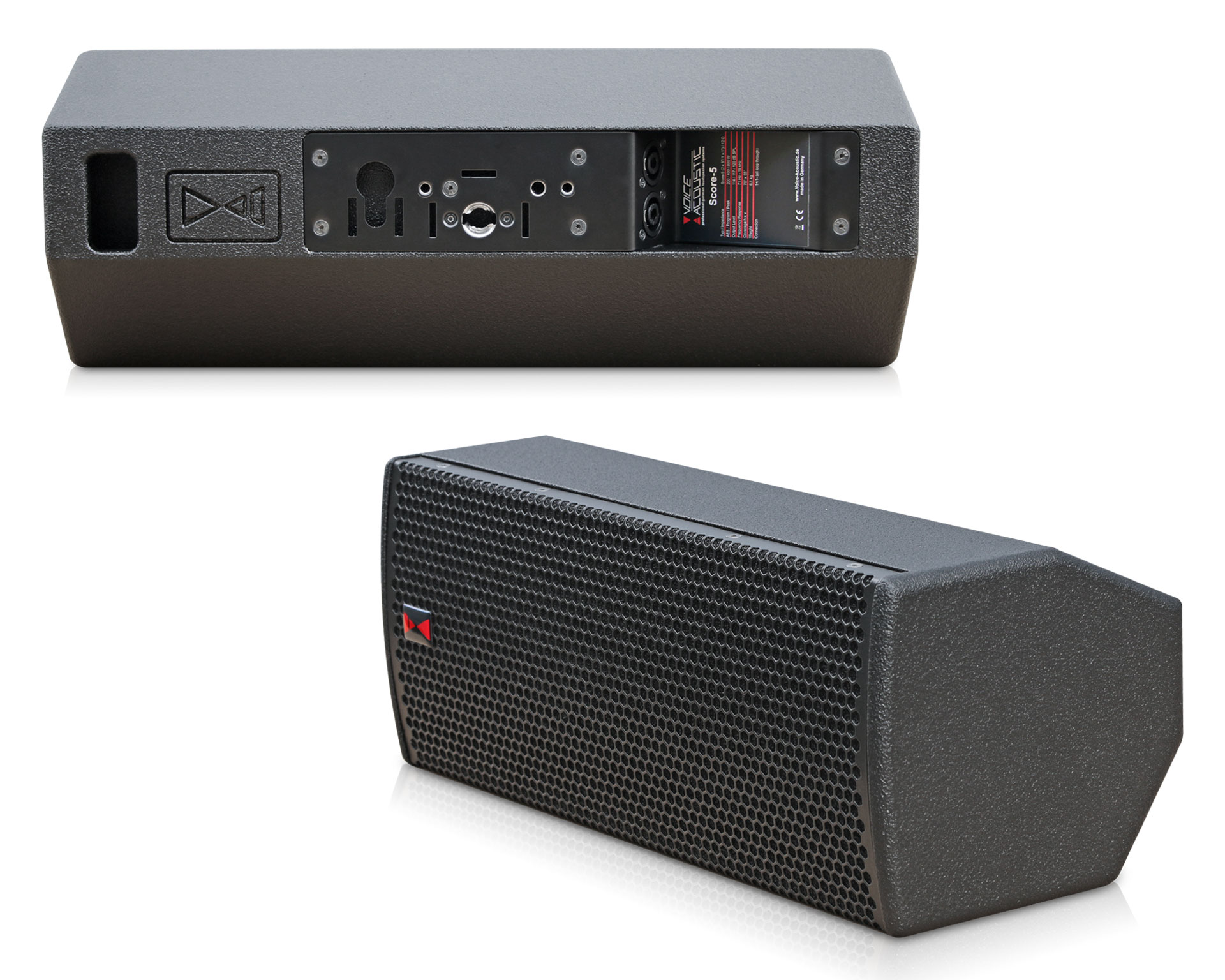

Connection
2 x NEUTRIK NL4 IN/OUT 1+/- (4-pole looped-through)

Finish
Polyurea coating in RAL 9005.

Dimensions / Weight
450 (H) x 172 (W) x 190 mm (D) / 6,1 kg
