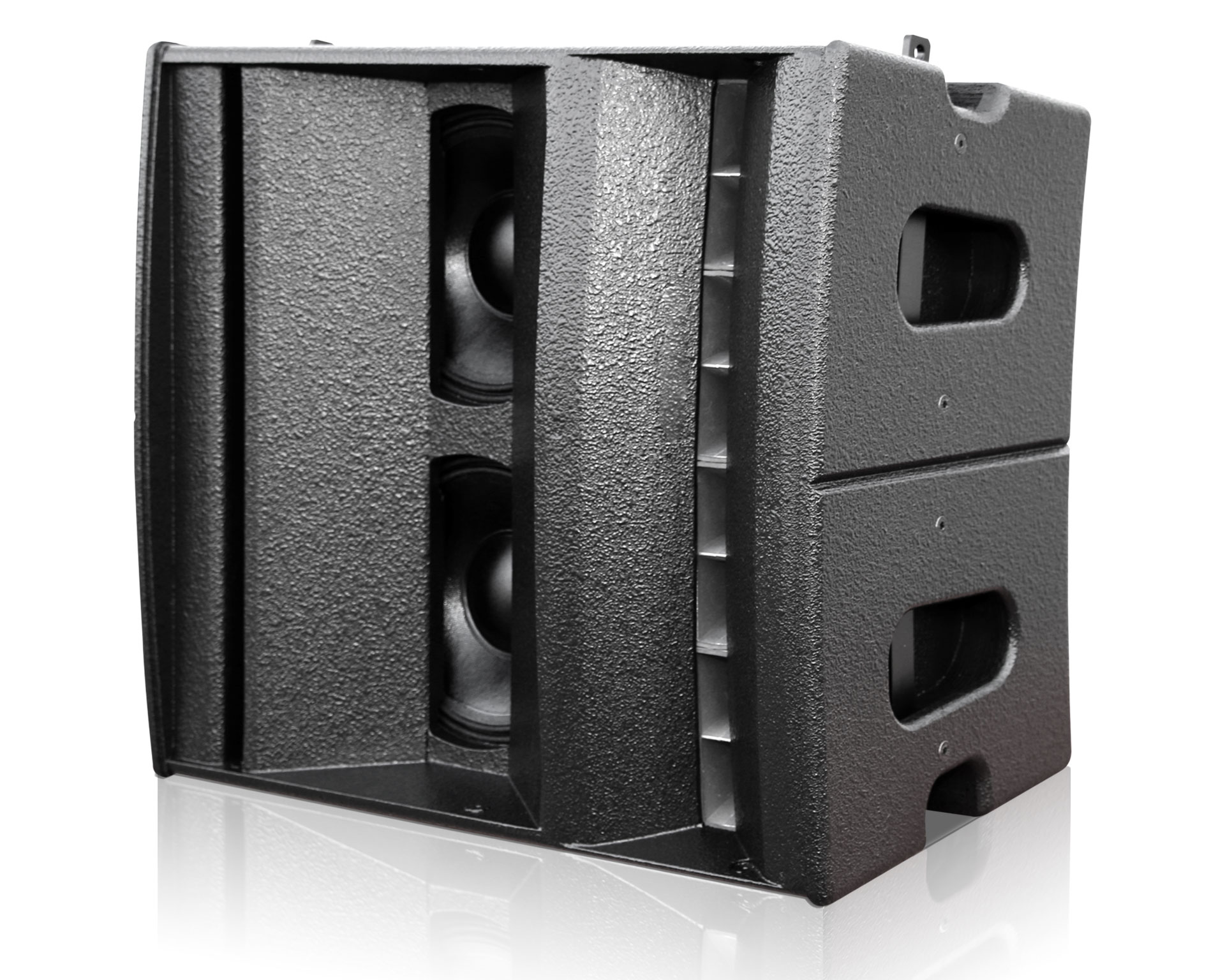

Drivers
LF: 2 x 8" Neodym woofer mit 65 mm (2,5") voice coil
HF: 4 x 1" Neodym compression driver with 44 mm (1,75") voice coil

Frequency range 15°
80 Hz - 19 kHz (- 10 dB)
117 Hz - 16 kHz (+/- 3 dB)

Frequency range 5°
80 Hz - 19 kHz (- 10 dB)
117 Hz - 16 kHz (+/- 3 dB)

Coverage range (h x v)
100° x 15° or 100° x 5° depending on the housing version

Impedance
4 Ω

Powerhandling (AES / Program / Peak)
500 W / 1.000 W / 2.000 W

Sensitivity 1 W/1 m
15° : 104 dB SPL
5° : 106 dB SPL

Sound pressure at (AES / Program / Peak)
15° : 131 dB SPL / 134 dB SPL / 137 dB SPL
5° : 133 dB SPL / 136 dB SPL / 139 dB SPL

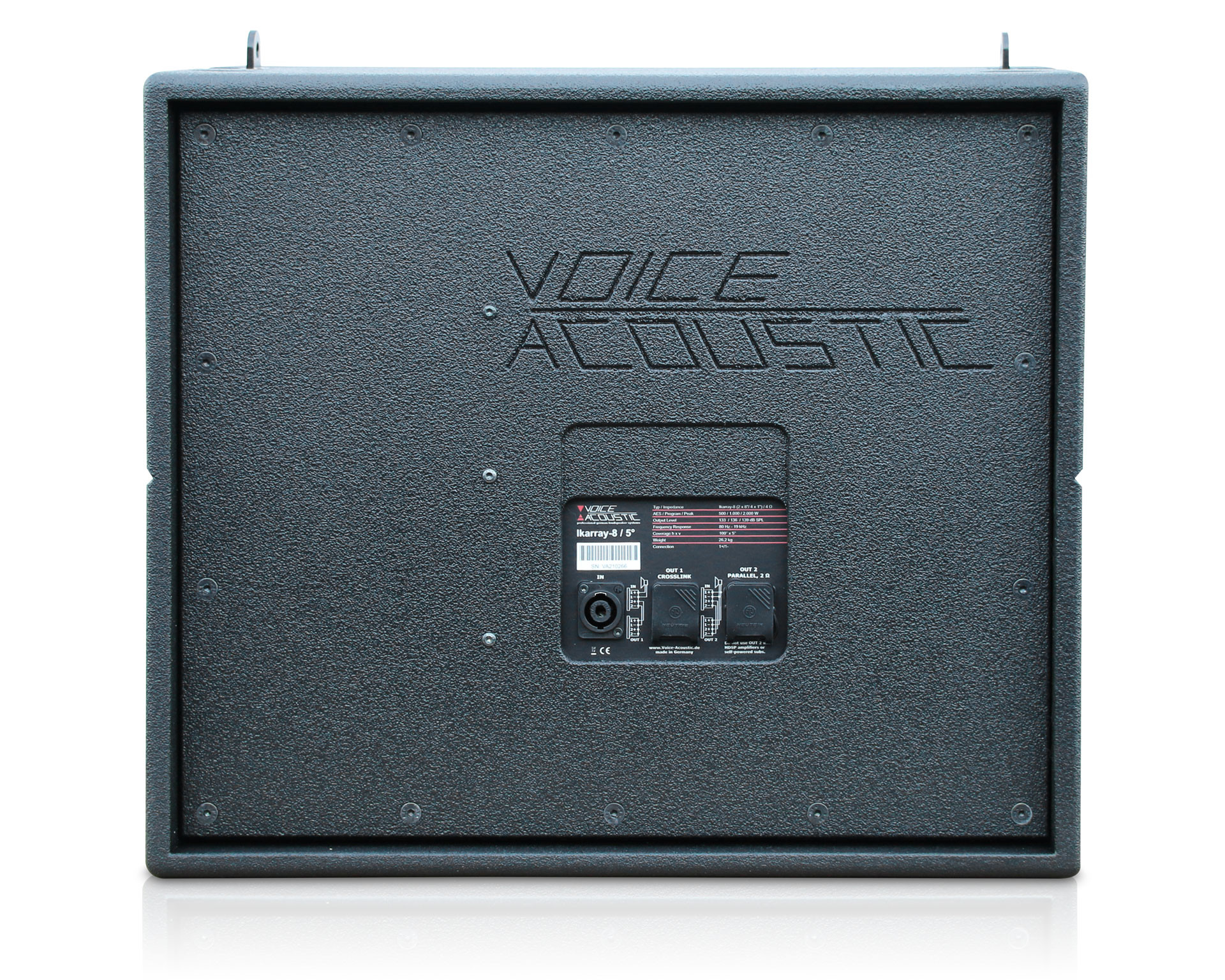

Connection
2 x NEUTRIK NL4 IN/OUT 1+/-

Finish
Polyurea coating in RAL 9005

Dimensions / Weight
465 (H) x 513 (B) x 291 mm (T) / 26,2 kg
