Quantity channel
4 Channel, class-D latest generation
Power
3.200 W (4 x 800 W) at 4 Ω
1.800 W (4 x 400 W) at 8 Ω
800 W (4 x 200 W) at 16 Ω
Dual-Technology
2-fold construction for maximum operational safety
High, load-stable bass performance through individual power supplies
Powerconnector
1 x 16 A powerCON TRUE1 IN
Signal connection digital
2 x Dante (Digital Audio Network Through Ethernet)
2 x Digital AES/EBU, AES67

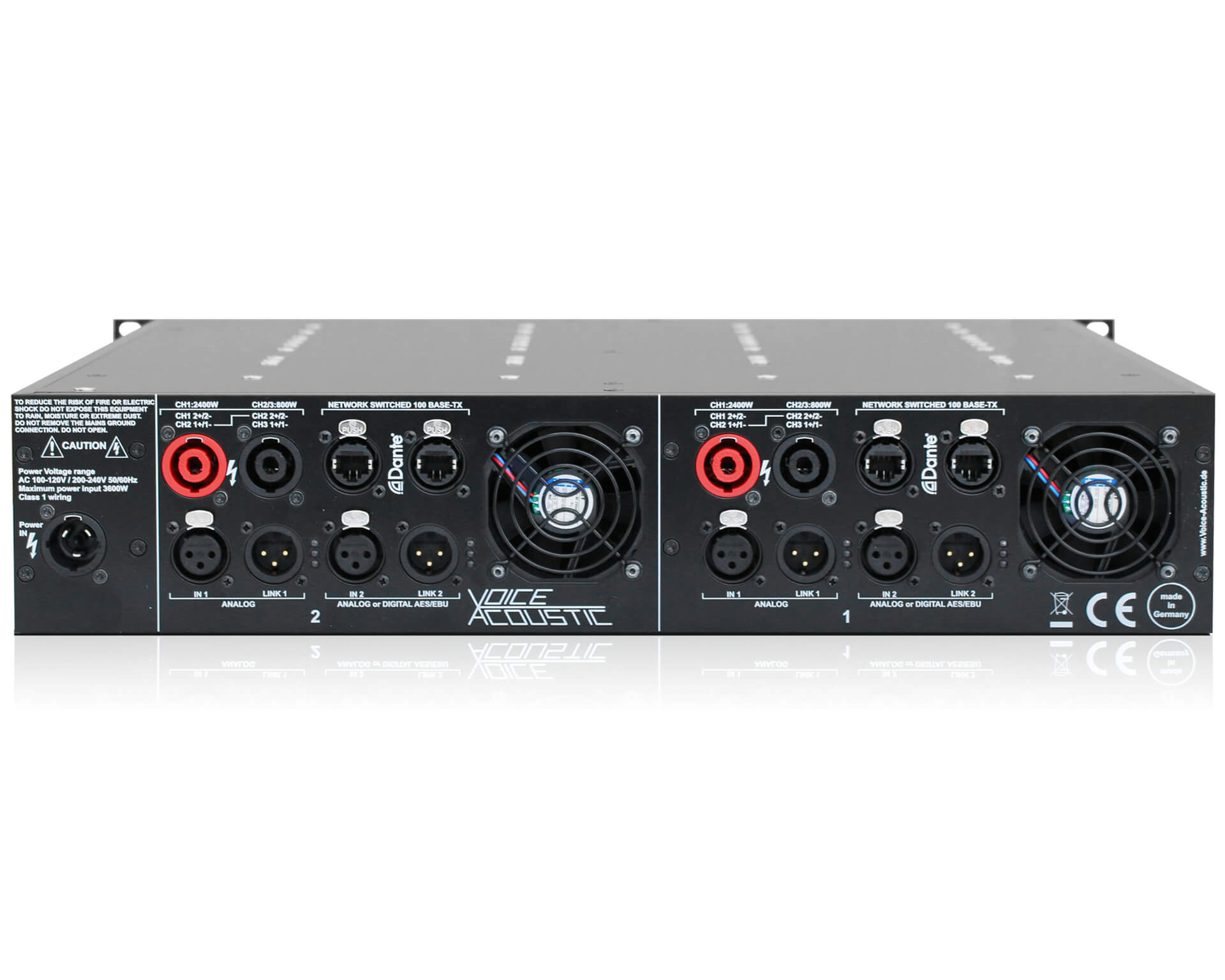

Signal connection analog
4 x XLR female/male
Speaker Connections
4 x speakON sockets, 4 pole assignment
Preset locations
2 x 120 preset locations, including 2 different presets assignable simultaneously
Manual hand operation
Menu navigation by means of buttons and digital rotary encoders, function lockable

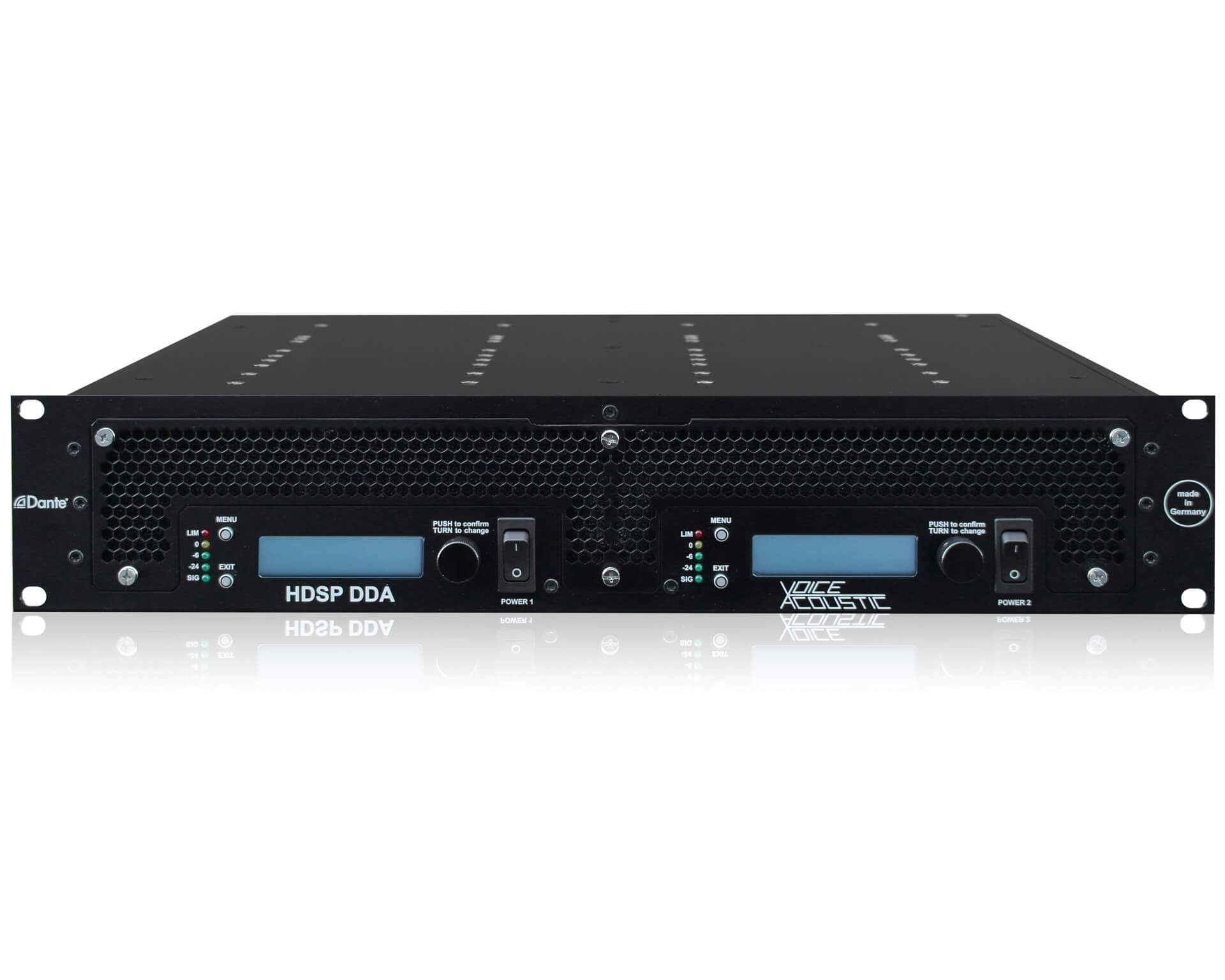

Display
2 x LED display
2 x LCD display with software dimmable and switchable
Body housing
19"/2 HE, 450 mm deep, strong black colored aluminum housing
Weight
5,2 kg
