Drivers
LF: 1 x 12" bass-midrange driver
HF: 1 x 1,4" Compression driver

Frequency range
54 Hz - 22 kHz (- 10 dB)
70 Hz - 20 kHz (+/- 3 dB)

Coverage range (h x v)
asymmetrical 100° to 50° x 55

Impedance
8 Ω

Powerhandling (AES / program / peak)
500 W / 1000 W / 2000 W

Sensitivity 1 W/1 m
96 dB SPL

Sound pressure at (AES / program / peak)
123 dB SPL / 126 dB SPL / 129 dB SPL

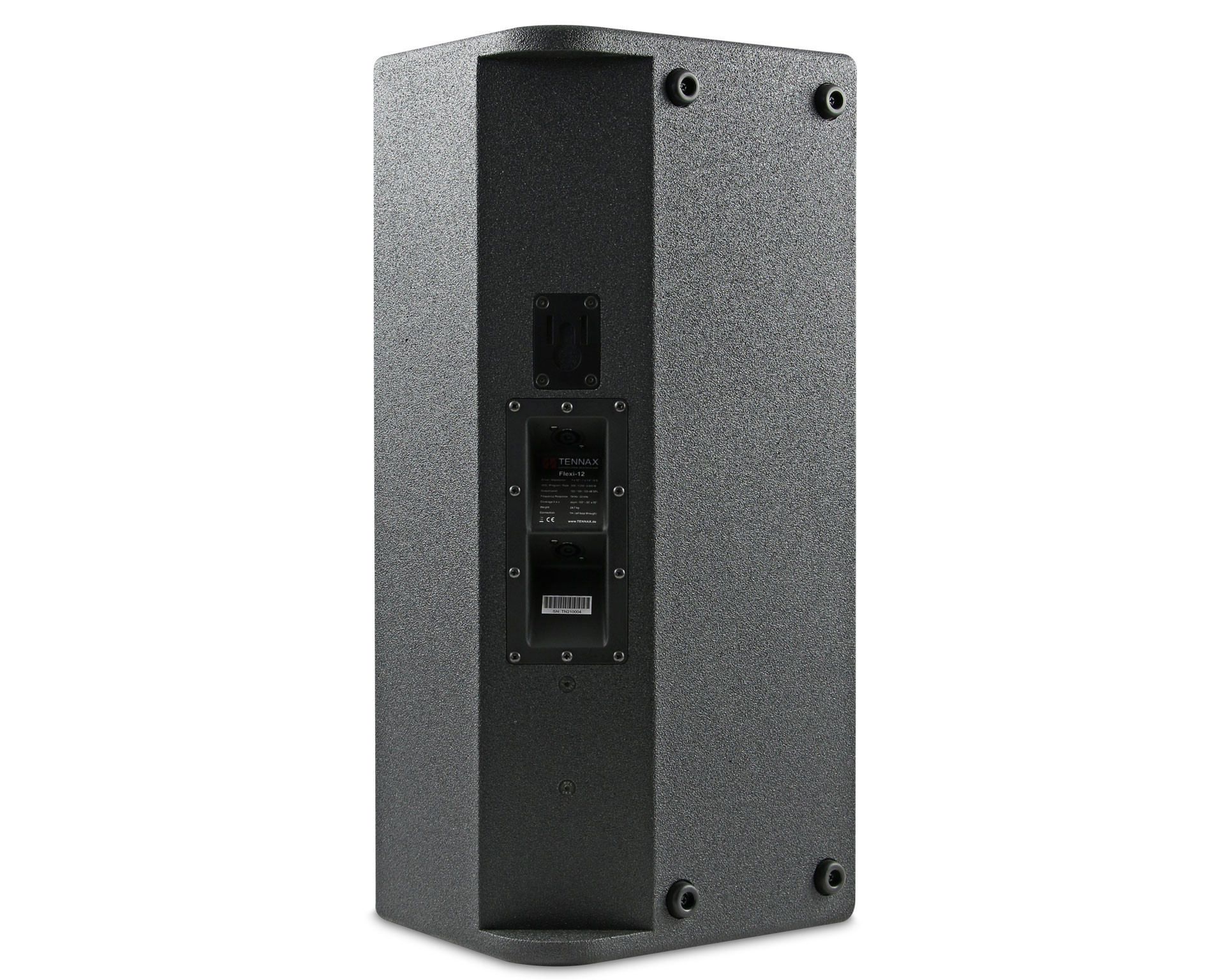

Connection
2 x Neutrik NL4 IN/OUT 1+/- (4-pole looped-through)

Finish
Polyurea coating in RAL 9005

Dimensions / Weight
651 (H) × 360 (W) × 373,3 mm (D) / 24,7 kg
